Soluble Fiber Paper

Soluble Fiber Paper

Product Description:

Description:

Temperature degree: 1200℃

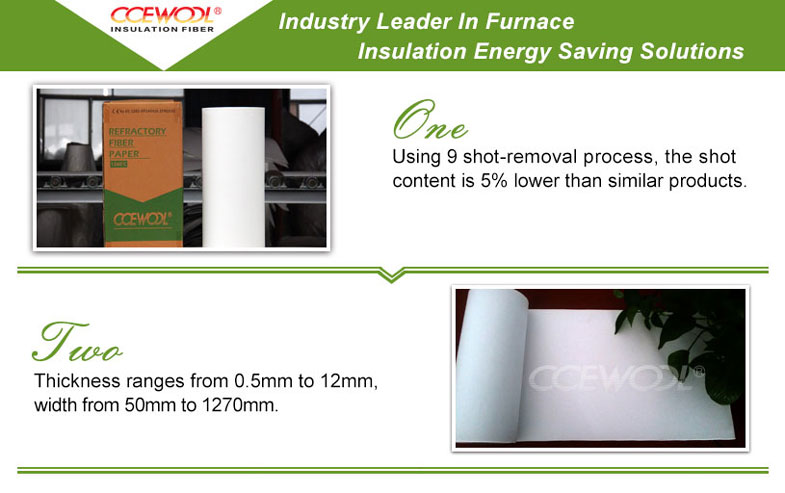

CCEWOOL® soluble fiber paper is made from alkaline earth silicate fiber consisting SiO2, MgO, CaO with certain organic binders. We supply soluble fiber paper whose thickness is from 0.5mm to 12mm, which can be used in many applications at temperatures up to 1000℃.

  • Characteristics:

    The color is bluish

    Max temperature up to 1200C

    Won't cause any uncomfortable feelings contacting with skin


    Application:

    High temperature gasket and sealing in various application

    Fire proof

    Fireproof doors

    Expansion joints

    Fireplace converter gasket

    Gasket between Aauminum and zinc washer

    - High temperature gaskets

    - Metal lining

    Melting and holding furnaces refractory backing

  • CCEWOOL®  Bio Soluble Fiber Paper

    Classification temperature

    1200 ℃

    Density, Kg/m3

    190-210

    Operation temperature

    1000℃

    Melting point

    >1300℃

    Tensile strength(Kpa)

    >250

    Loss on ignition (wt%)

    9

    Permanent Linear shrinkage, % ENV(1094-1)

    After 24 hours @1000℃

    1.5

    Thermal  conductivity (%)

    400℃

    0.1

    600℃

    0.16

    800℃

    0.22

    Chemical composition (%)

    SiO2

    65-68

    CaO+MgO

    27-33

    others

    <=3%

    Specification (MM)

    60000*610*1;30000*610*2

    20000*610*3;15000*610*4

    12000*610*5;10000*610*6

    Min Width: 5cm

    Package

    Inner Plastic Bag+Outer Carton
