Soluble Fiber Board

Soluble Fiber Board

Product Description:

Description:

Temperature degree: 1200℃

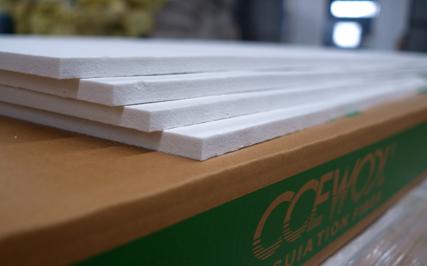

CCEWOOL® soluble fiber board is rigid board using CCEWOOL soluble fiber board with organic and inorganic binder. CCEWOOL® soluble fiber board is able to contact with fire directly and can be cut into different size. Low thermal conductivity, low heat storage and excellent resistance to thermal shock allow this product to be used in a wide range of application where temperature changes fast.

  • Characteristic:

    Low thermal conductivity

    Low thermal storage

    High tensile strength

    Thermal shock resistance

    Lightweight

    Excellent corrosion resistance


    Application:

    Hot face lining for furnace and oven

    Flue & chimney linings in furnaces & kilns

    Insulating backup for these products:

    l Fire brick

    l Insulating brick

    l Refractory castable

    Insulation for electric appliance and heat treatment


  • CCEWOOL® Soluble Fiber board

    Classification temperature

    1200 ℃

    Density kg/m3

    300. 320. 350

    Max short term exposure

    1200 ℃

    Operation temperature

    1000 ℃

    Melting point

    1270 ℃

    Permanent linear change on reheating, %, EN1091-1

    After 2 hours heating @600℃

    0.15

    @800℃

    0.35

    @1000℃

    0.35

    Thermal conductivity, W/m.K  ASTMC-201

    temperature @200℃

    0.07

    @400℃

    0.1

    @600℃

    0.15

    @800℃

    0.19

    Chemical composition(%)

    SiO2

    65-68

    CaO

    27-33

    MgO

    2-7

    Others

    0-1


    Common Size(mm)

    L x W

    1200x1000;1200x600;

    1000X1000;1000X600;

    900x600; 600x300

    Thickness

    10-80

    Packing

    Inner Plastic Bag + Outer pallet or Carton
