CCEWOOL® research series ceramic fiber aluminum foil blanket

CCEWOOL® research series ceramic fiber aluminum foil blanket

Product Description:

Description:

Temperature degree: 1260℃ (2300℉), 1400℃(2550℉), 1430℃(2600℉)

CCEWOOL® research series ceramic fiber aluminum foil blanket is mainly used for insulation and fire resistant application in fire protection pipe, flue and vessel.

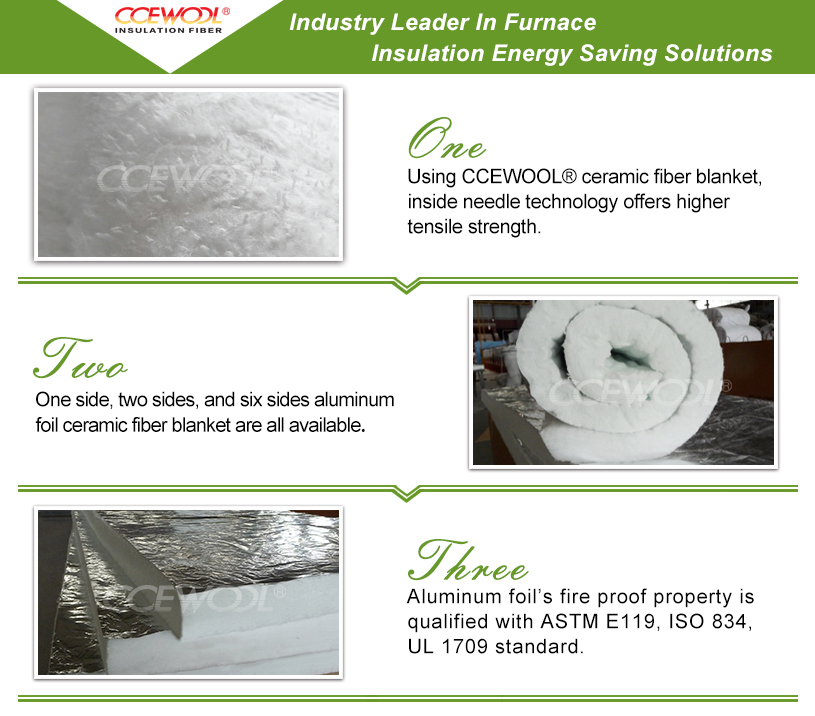

Adopting European standard aluminum foil, the aluminum foil is thin and has good conformability. Being directly bond without using binders can connect the CCEWOOL ceramic fiber blanket with the aluminum foil better. This product is easy to install and more durable.


  • Characteristics:

    Excellent chemical stability;

    Excellent thermal stability;

    Excellent tensile strength;

    Low thermal conductivity;

    Low heat capacity;

    Excellent insulation properties;

    Good sound insulation


    Application:

    Cable bracket, duct

    Railroad oil tanker

    Vessel

    Vessel wall and board

    Expansion joint

    Structural steel panel

    Seals for fireproof door

    Electric circuit protection

    Chimney liner insulation

    General high temperature insulation, exhaust ducts of commercial and industrial application

    High temperature ventilation ducts, kitchen exhaust hoods and fume pipes,supply and exhaust air vents

    Fire protection, Ships engine rooms, exhaust chimneys

    Air ventilation duct enclosure, through penetration fire stop systems

    Electrical ducts, protection of electrical wiring

  • CCEWOOL® RESEARCH series ceramic fiber banket with alumina foil

    Classification temperature

    1260STD (2300℉)

    1260 HP  (2300℉)

    1400AZ

    1430HZ

    (2550℉)

    (2600℉)

    Operation Temp(℃)

    1050

    1100

    1200

    1350

    Density (kg/m3)

    64/ 96/ 128/160 (4,6,8,10lb/ft3)

    Permanent Change on Heating (%), EN1094-1

    After 24 hours           @950℃

    -

    -

    -

    -

    @1000℃

    1.5

    1.5

    -

    -

    @1100℃

    2.5

    2.2

    1.5

    -

    @1200℃

    3

    3

    2

    1

    @1300℃

    -

    -

    3

    2

    @1400℃

    -

    -

    -

    3

    Tensile Strength(Kg/m3), EN1094-1 KPa

    Density                   64kg/m3

    30

    30

    30

    30

    96kg/m3

    50

    50

    50

    50

    128kg/m3

    70

    70

    70

    70

    160kg/m3

    100

    100

    100

    100

    Heat Conductive Co-efficient W/(m·k)(128kg/m3)

    Temperature

    @200℃

    0.07



    0.06


    @400℃

    0.12



    0.11


    @600℃

    0.2



    0.16


    @800℃

    0.3



    0.23


    @1000℃

    0.45

    0.4

    0.43

    0.35

    Chemical Composition of ceramic blanket  (%)



    Al2O3

    45-46

    47-49

    45-46

    35-38

    Al2O3+SiO2

    ≥98

    ≥99

    -

    -

    ZrO2

    -

    -

    5

    15-17

    Al2O3+SiO2+ZrO2

    -

    -

    ≥99

    ≥99

    Fe2O3

    ≤0.8

    ≤0.2

    ≤0.2

    ≤0.2

    Na2O+K2O

    ≤0.3

    ≤0.2

    ≤0.2

    ≤0.2

    CaO+MgO

    ≤0.1

    ≤0.1

    ≤0.1

    ≤0.1


    Thickness

    Density kg/m3

    Length

    Width

    mm

    96

    128

    160

    mm

    mm

    13

    7200

    610, 1220

    19

    9760

    25

    7320

    38

    4880

    50

    -

    3660


    Note:

    (○) and 1220mm width can be customized according to customer (order amount should not be less than the minimum order quantity)

    (√) for conventional products
