SIC Series Silicon carbide products

SIC Series Silicon carbide products

fulltitle

video

Inquire Now

Product Description:

Silicon carbide products with advantages of good wear resistance, creep resistance, good corrosion resistance, high strength, low thermal expansion coefficient, good thermal conductivity and thermal stability.

  • Feature:

    Good wear resistance

    Creep resistance

    Good corrosion resistance

    High strength

    Low thermal expansion coefficient

    Good thermal conductivity

    Good thermal stability

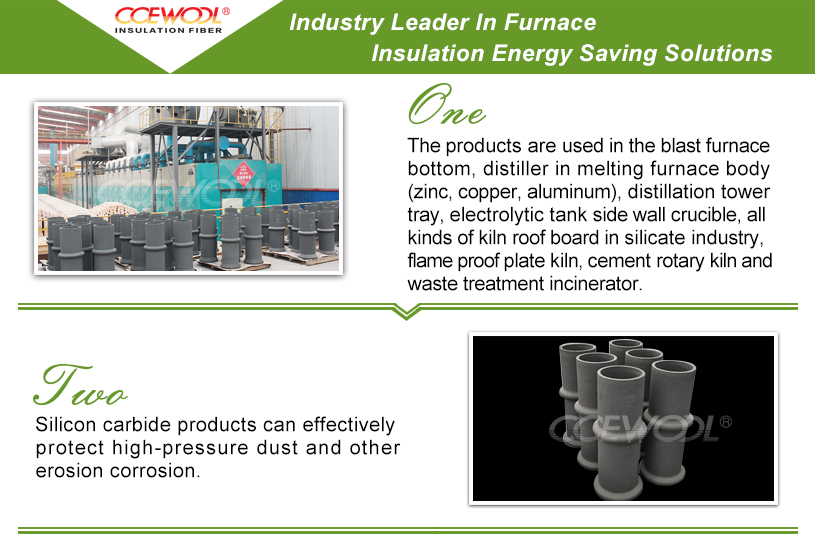

    Application:

    1. The application in non-ferrous metal smelting industry

    As high temperature indirect heating materials, such as tank distillation furnace, distillation furnace tray, electrolytic aluminum tank, copper smelting furnace lining, zinc furnace arc plate, thermocouple protection tube. This is the use of silicon carbide’s high temperature resistance, high strength, good thermal conductivity and shock resistance.

    2. The application in steel industry

    The characteristics of corrosion resistance, thermal shock resistance, wear resistance and good thermal conductivity of silicon carbide are used to improve the service life of large blast furnace lining.

    3. The application in metallurgical industry

    The hardness of silicon carbide is second only to diamond, which has strong wear resistance. It is the ideal material of mine bucket lining, wear resistant pipe, impeller, pump chamber and cyclone. Its wear resistance is 5-20 times the service life of cast iron and rubber, which is also an ideal material of aviation flight runway.

    4. The application in building, ceramics and grinding wheel industry

    By using silicon carbide’s characteristics of high thermal conductivity, thermal radiation and high strength, manufacturing kiln sheet which can not only reduce kiln capacity, but also furnace installed capacity and product quality, shorten production cycle. It is an ideal indirect material for ceramic glaze baking sintering.

    5. The application in energy saving

    Using good thermal conductivity and thermal stability as heat exchanger, fuel consumption reduced by 20%, saving fuel by 35%, so that productivity increased by 20-30%. In particular, the pipeline discharge in the mine, the wear resistance is 6 ~ 7 times as ordinary wear-resistant materials.

  • CCEWOOL ® SIC Series Silicon carbide products

    Properties BrandSIC90SIC20SIC10
    Apparent Porosity(%)20≥20≥20≥
    Bulk Density2.55≤2.50≤2.35≤
    Cold Crushing Strength (kg/cm2)1000≤900≤800≤
    SIC90≤20≤10≤
    AL2O3
    43≤42≤
